San Dimas Station

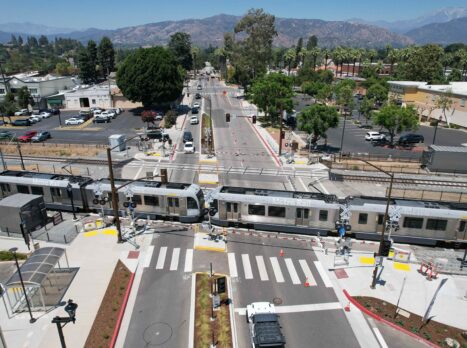

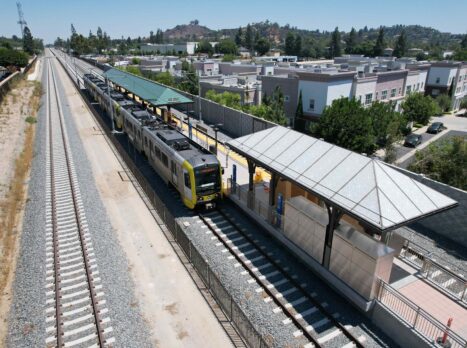

The San Dimas station is part of the Foothill Gold Line light rail project from Glendora to Montclair, and will be located east of San Dimas Avenue between Bonita Avenue and Arrow Highway. The station will be a center platform station, with light rail tracks on either side (one for westbound and one for eastbound trains). The San Dimas station will have an associated parking facility, and have amenities for riders arriving by walking, bicycle, bus and drop-off.

Once completed, three tracks will run through the City of San Dimas within the shared rail corridor – the two light rail tracks will be located in the south portion for the Gold Line and the one freight track will be on the north. While the two systems will share the rail corridor, light rail trains and freight trains do not share tracks.

Permanent changes will also occur due to the project, including safety enhancements at all street crossings (raised medians, red curbing and turn restrictions within 100 feet of the rail corridor at all street crossings), relocation of the freight track to the northern half of the rail corridor, new fencing and walls along the entire rail corridor, and new overhead lines to power the Gold Line system. Additionally, the intersection of Bonita Avenue/Cataract Avenue will be fully reconstructed, and a new traffic signal will be installed to replace the current stop signs. A new light rail bridge will be built over the Bonita Avenue/Cataract Avenue intersection for Gold Line trains only, requiring the permanent closure of Monte Vista Avenue at the railroad corridor to vehicles (click here to learn more about the bridge). The bridge and intersection changes are required by the California Public Utilities Commission for safety. A new pedestrian underpass will be built to allow north/south pedestrian access at Monte Vista Avenue. The freight track will remain at street level.

Once completed, a trip from San Dimas to Pasadena will take about 27 minutes and further to downtown Los Angeles will take approximately 56 minutes.

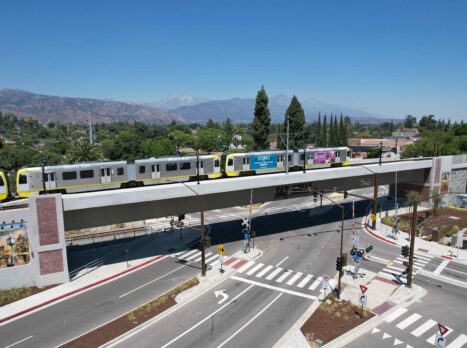

Bonita Ave/Cataract Ave Intersection Bridge

The California Public Utilities Commission (CPUC) is responsible for reviewing and approving all grade crossings in the State of California where a train is proposed to cross a street or pedestrian walkway. As part of the CPUC’s extensive review process for the Foothill Gold Line project, the regulatory agency has required that a new bridge be built over the intersection of Bonita Ave/Cataract Ave in the City of San Dimas for the Gold Line only. The bridge is being required for safety of both the new light rail system and the city streets; as the result of an estimated 200+ Gold Line trains crossing this intersection each day in the future.

As part of the CPUC approval, the existing freight track will be relocated within the existing railroad corridor and remain at street level; and the intersection of Bonita Ave/Cataract Ave will be reconfigured to improve safety and visibility. Monte Vista Avenue will be permanently closed to vehicular traffic, and a pedestrian walkway will be built through the bridge structure.

For more information on the station, including the public art planned, click here for the latest station fact sheet.

For more information on the bridge over the Bonita Ave/Cataract Ave intersection, click here for a fact sheet. To see 3D simulations of the bridge, click here.
